• Coolant ports: M18x1.5
• Oil feed port: M14x1.5
• Compressor intake OD: 4.0”
• Compressor outlet OD: 2.9”

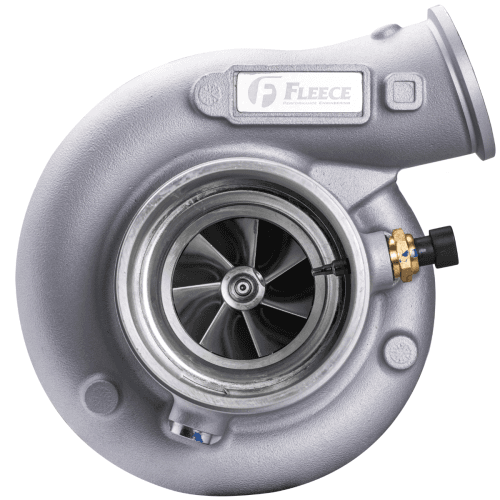

• Compressor wheel:
-Blade count: 7x7
-Inducer: 67mm
-Exducer: 92mm

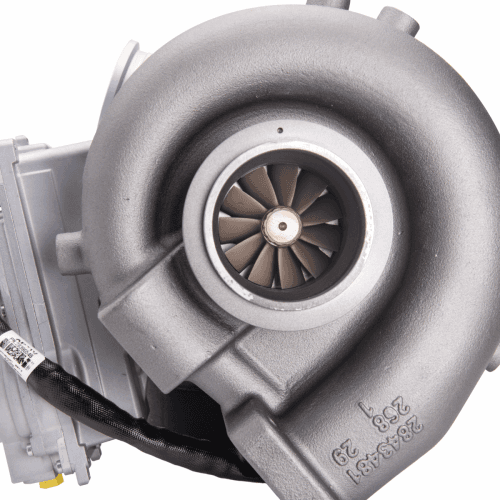

• Turbine wheel:
-Blade count: 11
-Inducer: 72mm
-Exducer: 67mm
• Fits Cummins ISX15 CM2250 and CM2350
• Replaces Holset part number: 2882111
PRIOR PART NUMBERS AND CROSS-REFERENCE:
2882110NX, 2840007, 2841220, 2841221, 2841222, 2881807, 2882004, 2882110, 2882111, 3768194, 3773561, 3773562, 3773569, 3792586, 288211100, 288211100, 2882004NX, 2882004NX, 2882110NX, 288211100HX, 2882111NX, 2882111NX, 2882111RX, 3792586H, 3792586HX
