Benefits:
•Lowers coolant temperature at the rear cylinders
•Ensures consistent temperatures across all cylinders
•Prevents damaging coolant pressure build up

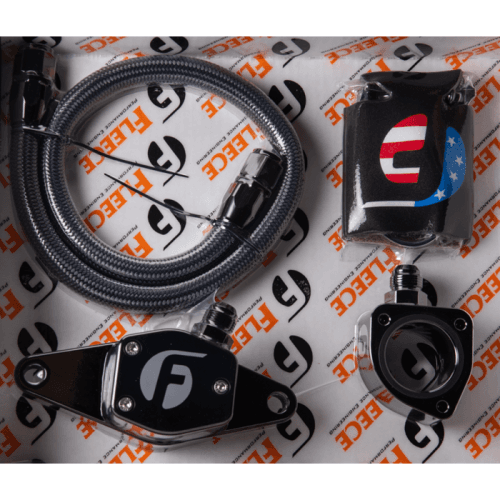

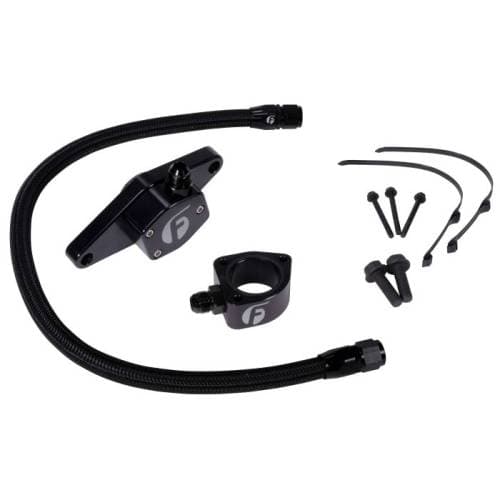

•Complete kit comes with braided hose and AN O-ring fittings to ensure a leak-free installation. Kits for MY 2003+ include billet hose brackets.
Why do I need a Fleece Performance Coolant Bypass?
One of the biggest issues on the 5.9/6.7L Cummins is the coolant flow problem to the rear cylinders. This can cause catastrophic failure or blow outs of the freeze plugs in an over-temperature / over-pressure condition. The Fleece Performance Coolant Bypass is one of the most important additions you make to improve the reliability and longevity of the Cummins platform.
Application Notes
The 2003 - 2007 5.9L automatic transmission version will eliminate the factory transmission fluid heat exchanger. The heat exchanger is designed for use in cold climates to warm the transmission fluid with the engine coolant. It is not necessary for use in warm climates or high horsepower applications, nor does it detrimentally affect the trucks performance when removed.
For model years 2007 - 2018 6.7L trucks, including both automatic and manual equipped transmissions, factory installed transmission fluid heat exchangers are uncommon. For customers with a 6.7L that has a heat exchanger, a heater tube can be purchased at your local Chrysler Dealership [PN:68048997AA] to complete the installation.
Fitment:
1998.5 Dodge Ram 2500/3500 5.9L VP 24V Cummins
1999 Dodge Ram 2500/3500 5.9L VP 24V Cummins
2000 Dodge Ram 2500/3500 5.9L VP 24V Cummins
2001 Dodge Ram 2500/3500 5.9L VP 24V Cummins
2002 Dodge Ram 2500/3500 5.9L VP 24V Cummins
SEMA CERT: SC-FLC01-0124
