Features:
•Simple, 5 minute installation in the under hood relay panel
•Keeps your Fog lights ON when the High beams are enabled
•Retains normal operation of your Fog lights when the High beams are OFF
Installation
•Open the hood and remove the relay panel cover.

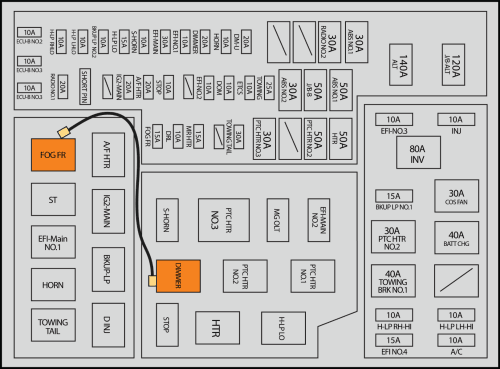

•Remove the relays labeled: FOG FR and DIMMER

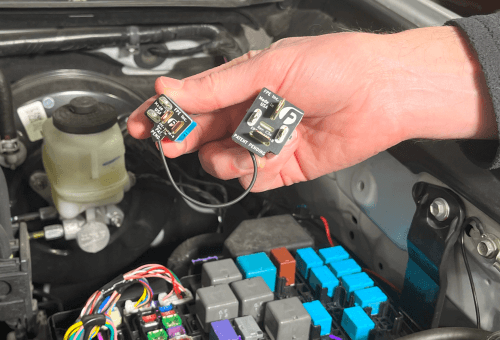

•Insert the relays through the All Lights On boards with the wire connection facing towards the top of the relay. The board will make a firm connection with the relay.
•Reinstall the two relays back into their original location and install the relay panel cover.
Operation
MY2016-2023 Tacoma: High beams, low beams, and fog lights on when high beams are enabled. The fog lights will not be enabled when the auto-high beam feature is activated. For full functionality, auto-high beams should be deactivated.
Application
Fits 2016-2023 Toyota Tacoma with factory installed fog lamps.
* Protected under US Trademark Reg. No. 6068463, 6099979, US Copyright Reg No. TXu 2-413-681, and US Patents Pending
Warranty
1 Year Limited Parts Warranty
