THE ISSUE WITH OTHER PUMPS:
We set out to make not only a larger pump, but also a better build pump. Each set of gears is custom cut and ground as a set and then final grounding to housing to achieve final clearance. This ensures less wear and better efficiency. DIESELSITE has seen other aftermarket replacement pumps be out of parallel from the back to the front surface of the pump as well as the mounting surface machined so poorly that they wobbled on a flat surface. They rely on the gasket to seal (which is does), but that surface inconsistency allows the gears to move in an undesirable manner. This could cause low oil pressure or in extreme cases cause scoring or damage to the timing cover.
WHAT'S INCLUDED:

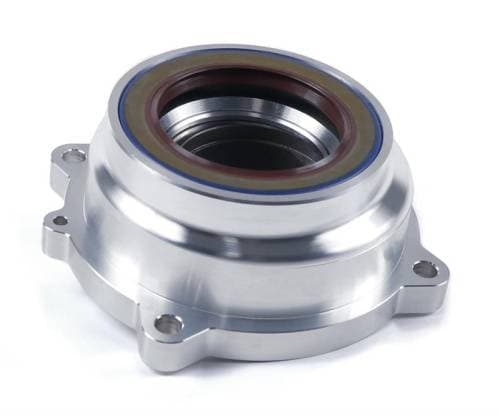

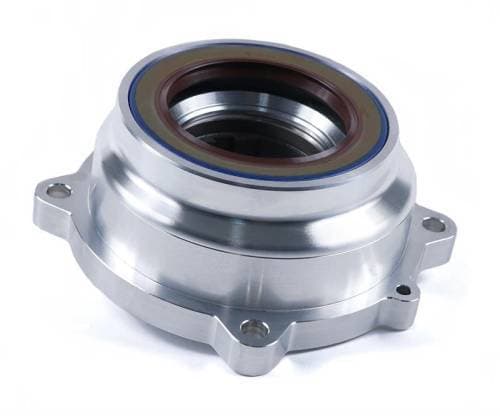

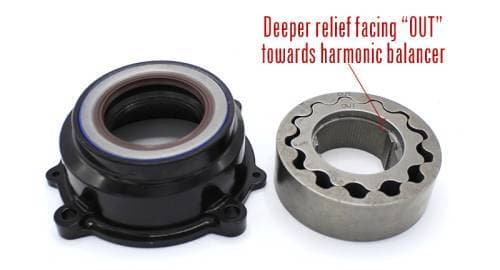

Our new High Volume LPOP includes the new pump cover with dual viton seals, new pump cover to front engine cover gasket, and new oil pump gears designed to increase flow and pressure while reducing cavitation.
*NOTE: Do not attempt to use a different pump housing with our gears, they are not cross compatible.
Installation is straight forward requiring only a few basic tool as well as a fan removal tool and harmonic balancer puller (you can rent from local auto parts stores). No other modifications must be made; this can be bolted onto any configuration from stock to highly modified engines.
Below is an example of a truck with normal miles for the year. Exact number are NOT guaranteed but a comparable result should be expected.
STOCK PUMP:
Startup (65°)
Idle (680 RPM): 40 PSI
High Idle (1100 RPM): 50 PSI
Warm (170°)
Idle (680 RPM): 20 PSI
Cruising (2200 RPM): 40 PSI
Free Rev (3500 RPM): 52 PSI
HIGH VOLUME PUMP: Initial Install
Startup (65°)
Idle (680 RPM): 52 PSI
High Idle (1100 RPM): 65 PSI
Warm (170°)
Idle (680 RPM): 32 PSI
Cruising (2200 RPM): 55 PSI
Free Rev (3500 RPM): 70 PSI
HIGH VOLUME PUMP: (after 6000 Miles)
Startup (65°)
Idle (680 RPM): 51 PSI
High Idle (1100 RPM): 62 PSI
Warm (170°)
Idle (680 RPM): 32 PSI
Cruising (2200 RPM): 55 PSI
Free Rev (3500 RPM): 68 PSI
