This warranty will be null and void if repair or replacement is required because of improper installation, accident, physical and, or, neglect, misuse or any other cause other than the ordinary and intended use for which the Product was designed, or if the Product has been dismantled, altered and, or, repaired by the customer or any third party.
Disc/Clutch Style: Dual Clutch - Single Disc
Diameter: 12"
Spline: 41 Spline
Pilot: 1.700" Diameter, 0.75" Long
Hub: Milled Flats, 2.305" OD, 1.7" Long

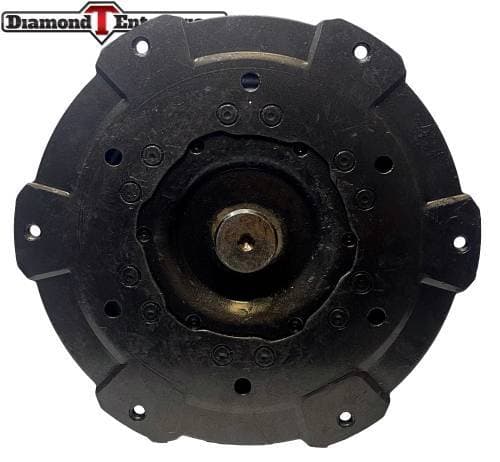

Mounting: Plate Riveted to Front Cover with 6 Treaded Holes, 10mm x 1.5 Threads, 11-1/2" Bolt Circle
Clutch: Captive Clutch, Rivets Visible from Front Cover
METAL STAMP: 24295458, 24290153, 24290697, 24293358, 24297075, 24050271
• Use this converter even if you have removed the Start/Stop feature with tuning.
