Features:
•High pressure injection molding. Greater precision, tighter tolerances, higher strength
•100% recycled materials: HDPE and anti-corrosion treated steel
•Built-in tie downs (also act as no-drill installation points for CargoGlide)

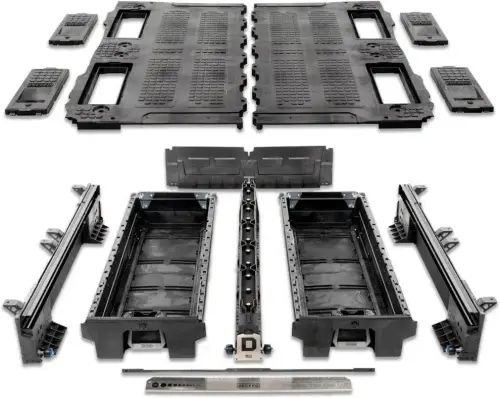

•Steel2Steel mounting – tie-down to bracket to turnbuckle to bed. Solid.
•Closeouts on front and sides increase weatherproofing, banish dust intrusion
•Stash Lids can act as openings to pass-through storage or power outlet access, or be used with removable, lockable Stash Bins
Tech Specs

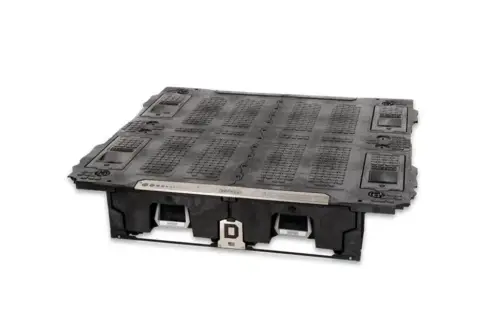

Drawers System for Toyota Tacoma (1995-2004) / 6' 2"
Dimensions and Capacities
Specs:
Weight: 204 lb.
Payload: 1000 lb.
Drawer Payload: 400 lb.

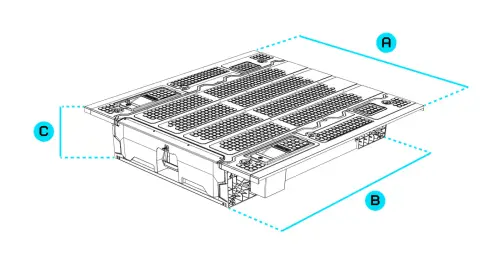

Dimensions:
A: 63.4 in.
B: 67.9 in.
C: 12.3 in.
Drawer Dimensions:
Drawer Length: 57.2 in.
Drawer Width: 35.6 in.
Drawer Clearance: 7.9 in.
Drawer Extension: 50 in.
General Fitment
FITMENT: Despite similar dimensions, all Drawer Systems are router cut to fit an exact make, model and year. We cannot guarantee the fitment of Drawer Systems not made specifically for that vehicle.
NOTE: This vehicle requires drilling holes in the truck bed for Drawer System installation unless cab side tie-downs are installed. For more information, check out the instructions here.
Compatible With:
•Spray-In Bed Liners
Good to go. Spray-in bed liners add minimal thickness to the bed walls and fit within our manufacturing tolerances.
•DECKED CargoGlide
Not Compatible With:
•5th Wheel/Gooseneck
•Bedrug / Drop-in Plastic Bed Liner
•Stepside / Flareside
•DECKED Tool Box
•Service Body
•Legacy Drawer System Accessories
•Retractable Tonneau Covers
