Tech Specs

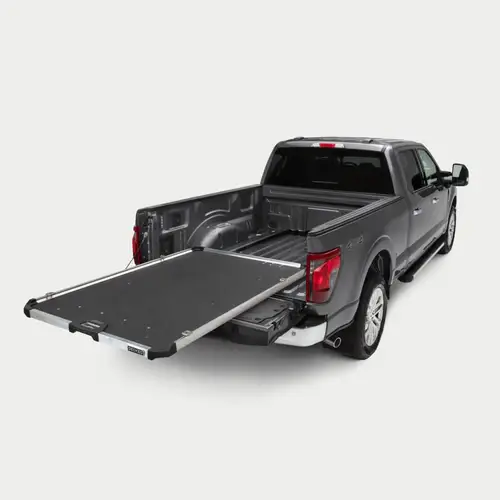

CargoGlide for Fullsize - Super / 75% / 1500 lbs
Dimensions and Capacities
Specs:
Weight: 175 lb.
Payload: 1500 lb.
System Dimensions:
A: 48.7 in.
B: 79.7 in.
C: 5.8 in.

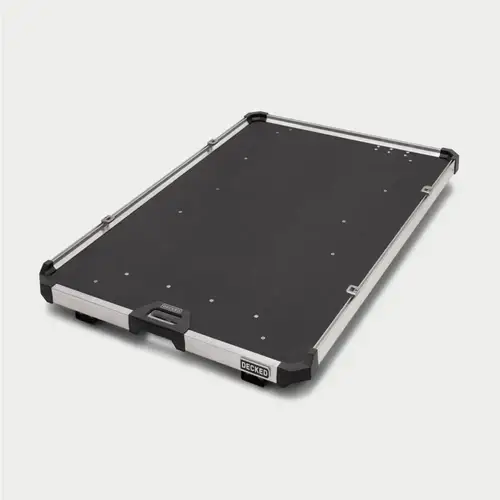

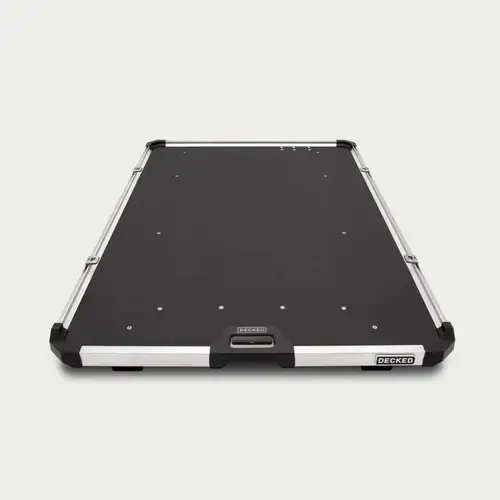

Tray Dimensions:
Tray Width: 45.3 in.
Tray Length: 76.3 in.
Tray Height: 4.5 in.
Extension: 75%.
General Fitment
CARGOGLIDE MATERIALS:
Powder-coated American steel frame
Industrial 0.75” plywood deck
Thermoplastic top sheet
Aluminum sidewalls
1,500 lb payload with 75% extension
4 cam follower bearings
4 needle roller bearings
2 precision machined stainless steel rollers
All 100% extension
14 double roller bearings mid-frame (p/n 3203zz)
12 side thrust bearings mid-frame (p/n 1601)
2 cam follower bearings bottom frame (tailgate end) 1.25" CYR
TAILGATE CLEARANCE:
Some tailgates don't lay flat when open, which can interfere with operation of the CargoGlide tray. Follow install instructions and check fitment before installing. All CargoGlide 75% models include integrated tailgate clearance with 2 adjustable height positions.
CARGOGLIDE INSTALLATION:
CargoGlide comes preassembled, so all you’ll need is 30-45 minutes, a few tools, and a buddy to help. Don’t forget the instructions, cowboy.
If you are mounting a CargoGlide to a Drawer System, the purchase of CargoGlide Mounting Brackets are required.
Compatible With:
Good to go. Spray-in bed liners add minimal thickness to the bed walls and fit within our manufacturing tolerances.
Not Compatible With:
Stepside / Flareside
Bedrug / Drop-in Plastic Bed Liner
Service Body
5th Wheel/Gooseneck
GMC Carbon Pro Bed
DECKED Tool Box
Rambox
All Legacy Drawer Systems
