Fitment:
1999-2025 Chevrolet Silverado 1500
1999-2004 Chevrolet Silverado 2500
2001-2019 Chevrolet Silverado 2500 HD
2011-2019 Chevrolet Silverado 3500 HD
1997-2010 Dodge Dakota
1994-2010 Dodge Ram 1500
1995-2010 Dodge Ram 2500
2003-2010 Dodge Ram 3500
2007-2009 Dodge Sprinter 2500
2007-2009 Dodge Sprinter 3500
1997-2025 Ford F-150
2019-2020 Freightliner Sprinter 1500
2007-2021 Freightliner Sprinter 2500
2007-2021 Freightliner Sprinter 3500
2018-2021 Freightliner Sprinter 3500XD
2019-2020 Freightliner Sprinter 4500
1999-2025 GMC Sierra 1500
1999-2004 GMC Sierra 2500
2001-2019 GMC Sierra 2500 HD
2011-2019 GMC Sierra 3500 HD
2019-2022 Mercedes-Benz Sprinter 1500
2010-2022 Mercedes-Benz Sprinter 2500
2024 Mercedes-Benz Sprinter 2500
2010-2022 Mercedes-Benz Sprinter 3500
2024 Mercedes-Benz Sprinter 3500
2018-2022 Mercedes-Benz Sprinter 3500XD
2024 Mercedes-Benz Sprinter 3500XD
2019-2020 Mercedes-Benz Sprinter 4500
2024-2025 Mercedes-Benz Sprinter 4500
2012-2021 Nissan NV1500
2012-2021 Nissan NV2500
2012-2021 Nissan NV3500
2004-2015 Nissan TITAN
2017-2022 Nissan TITAN
2024 Nissan TITAN
2024 Nissan TITAN XD
2011-2025 Ram 1500
2019-2024 Ram 1500 Classic
2023-2024 Ram 2500
2023-2024 Ram 3500
2007-2021 Toyota Tundra
Tech Specs

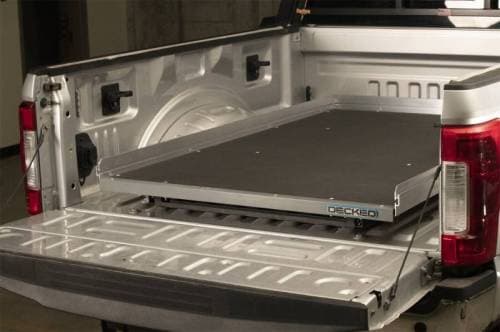

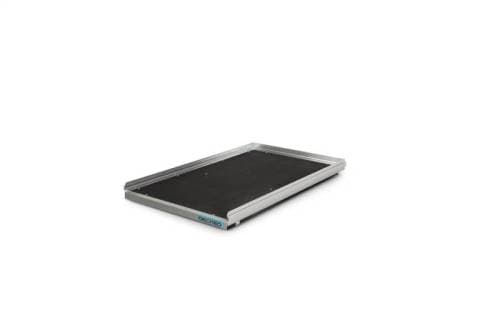

CargoGlide for Fullsize - Standard / 100% / 1000 lbs
Dimensions and Capacities
Specs:
Weight: 295 lb.
Payload: 1000 lb.
System Dimensions:
A: 48.7 in.
B: 73.4 in.
C: 13.6 in.

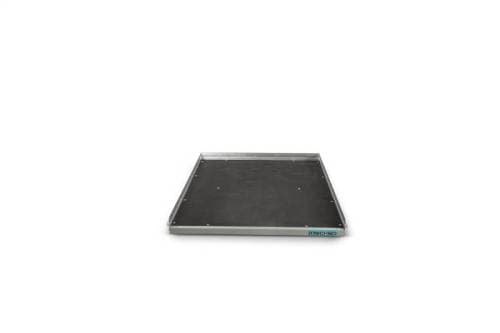

Tray Dimensions:
Tray Width: 45.3 in.
Tray Length: 69.3 in.
Tray Height: 5.6 in.

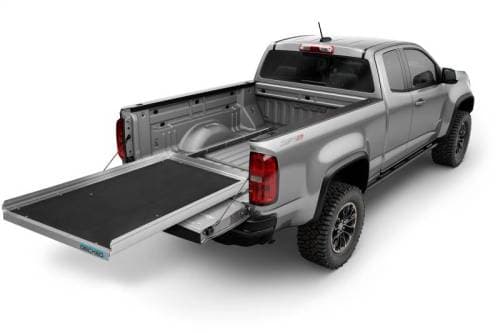

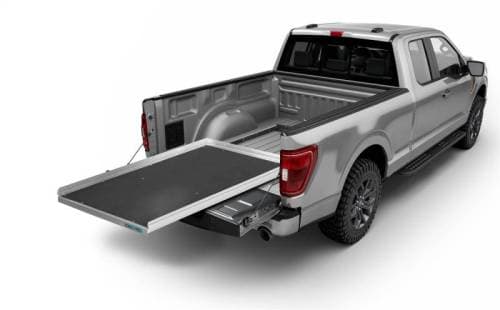

Extension: 100%.
General Fitment
CARGOGLIDE MATERIALS:
•Powder-coated American steel frame
•Industrial 0.75” plywood deck
•Thermoplastic top sheet
•Aluminum sidewalls
•1,500 lb payload with 75% extension
•4 cam follower bearings
•4 needle roller bearings
•2 precision machined stainless steel rollers
•All 100% extension
•14 double roller bearings mid-frame (p/n 3203zz)
•12 side thrust bearings mid-frame (p/n 1601)
•2 cam follower bearings bottom frame (tailgate end) 1.25" CYR
CARGOGLIDE INSTALLATION:
CargoGlide comes preassembled, so all you’ll need is 30-45 minutes, a few tools, and a buddy to help.
If you are mounting a CargoGlide to a Drawer System, the purchase of CargoGlide Mounting Brackets are required.

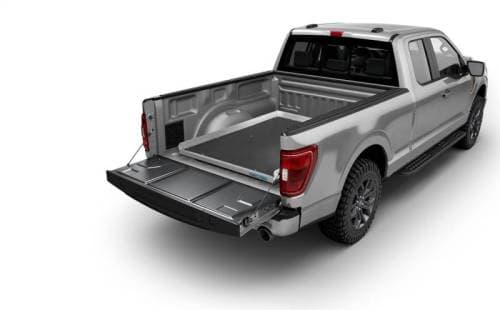

TAILGATE CLEARANCE:
Some tailgates don't lay flat when open, which can interfere with operation of the CargoGlide tray. Follow install instructions and check fitment before installing. CargoGlide XLs can use the CargoGlide Universal Riser Kit (CGSK-40) for additional clearance.
Compatible With:
•Spray-In Bed Liners
Good to go. Spray-in bed liners add minimal thickness to the bed walls and fit within our manufacturing tolerances.
Not Compatible With:
•Stepside / Flareside
•Bedrug / Drop-in Plastic Bed Liner
•Service Body
•5th Wheel/Gooseneck
•GMC Carbon Pro Bed
•DECKED Tool Box
•Rambox
•All Legacy Drawer Systems
•DECKED Drawer System is only compatible with 75% extension CargoGlide models
