Tech Specs

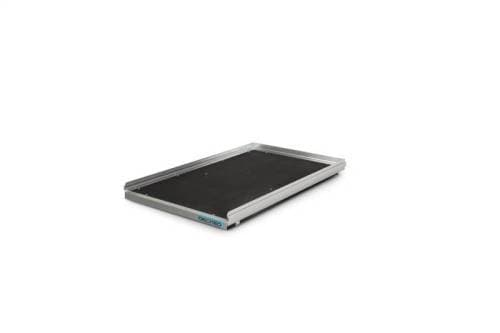

CargoGlide for Service Body / 100% / 2200 lbs
Dimensions and Capacities
Specs:
Weight: 443 lb.
Payload: 2200 lb.

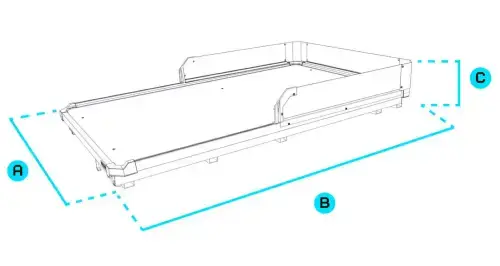

System Dimensions:
A: 46.2 in.
B: 95 in.
C: 13.5 in.
Tray Dimensions:
Tray Width: 46 in.
Tray Length: 94 in.
Tray Height: 5.5 in.
Extension: 100%.
General Fitment
CARGOGLIDE MATERIALS:
•Powder-coated American steel frame
•Industrial 0.75” plywood deck
•Thermoplastic top sheet
•Aluminum sidewalls
•1,500 lb payload with 75% extension
•4 cam follower bearings
•4 needle roller bearings
•2 precision machined stainless steel rollers
•All 100% extension
•14 double roller bearings mid-frame (p/n 3203zz)
•12 side thrust bearings mid-frame (p/n 1601)
•2 cam follower bearings bottom frame (tailgate end) 1.25" CYR
CARGOGLIDE INSTALLATION:
CargoGlide comes preassembled, so all you’ll need is 30-45 minutes, a few tools, and a buddy to help.
If you are mounting a CargoGlide to a Drawer System, the purchase of CargoGlide Mounting Brackets are required.
TAILGATE CLEARANCE:
Some tailgates don't lay flat when open, which can interfere with operation of the CargoGlide tray. Follow install instructions and check fitment before installing. CargoGlide XLs can use the CargoGlide Universal Riser Kit (CGSK-40) for additional clearance.
Compatible With:
•Spray-In Bed Liners
Good to go. Spray-in bed liners add minimal thickness to the bed walls and fit within our manufacturing tolerances.
Not Compatible With:
•Stepside / Flareside
•Bedrug / Drop-in Plastic Bed Liner
•5th Wheel/Gooseneck
•GMC Carbon Pro Bed
•DECKED Tool Box
•Rambox
•All Legacy Drawer Systems
•DECKED Drawer System is only compatible with 75% extension CargoGlide models
