Tech Specs

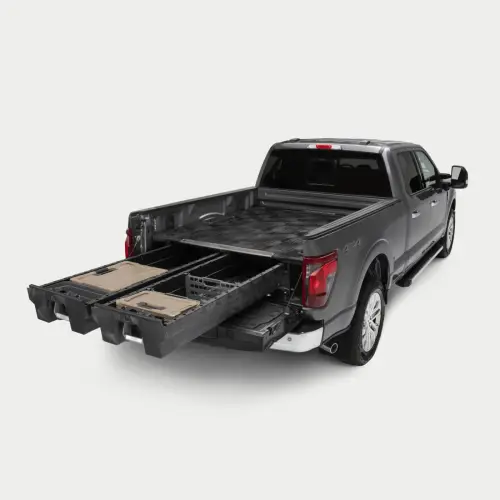

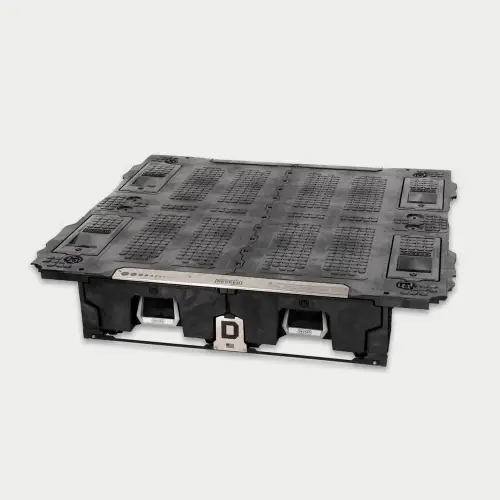

Drawers System for Ford F150 (2004-2014) / 8'
Dimensions and Capacities
Specs:
Weight: 283 lb.
Payload: 2000 lb.
Drawer Payload: 200 lb.

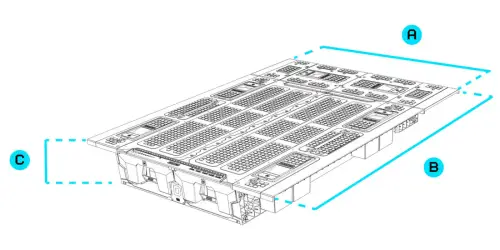

Dimensions:
A: 71.6 in.
B: 98 in.
C: 12.2 in.
Drawer Dimensions:
Drawer Length: 72 in.
Drawer Width: 18.4 in.
Drawer Clearance: 8 in.
Drawer Extension: 54 in.
General Fitment
FITMENT: Despite similar dimensions, all Drawer Systems are router cut to fit an exact make, model and year. We cannot guarantee the fitment of Drawer Systems not made specifically for that vehicle.
INSTALLATION REQUIRES DRILLING: 8 ft beds require drilling to properly secure system.
TAILGATE HANDLE: The Ford tailgate assist handle mounted on the tailgate MAY interfere with DECKED Drawer System depending on model year. You can easily remove the handle. The tailgate step will not impact the installation or use of your DECKED Drawer System.
Compatible With:
•Spray-In Bed Liners
Good to go. Spray-in bed liners add minimal thickness to the bed walls and fit within our manufacturing tolerances.
•DECKED CargoGlide
•Stash Bins
Not Compatible With:
•5th Wheel/Gooseneck
•Bedrug / Drop-in Plastic Bed Liner
•Stepside / Flareside
•GMC Carbon Pro Bed
•Legacy Drawer System Accessories
•Retractable Tonneau Covers
