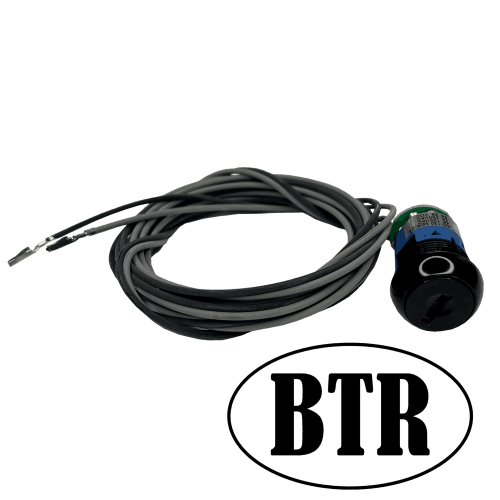

DSP5 Installation Help

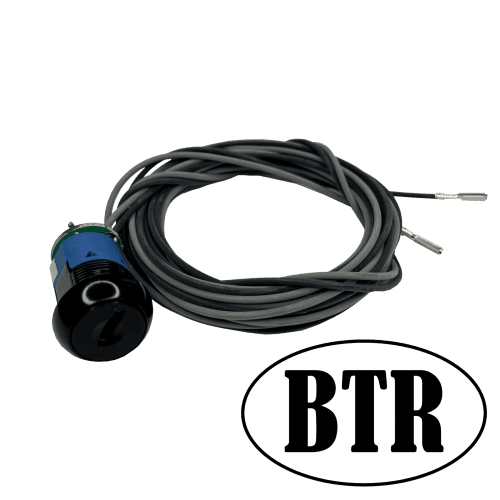

Pin numbers for your DSP5 Switch
LB7
Blue Wire = Blue connector, pin 69
Black Wire = Blue connector, pin 49
LLY
Purple Wire = Grey connector, pin 32
Black Wire = Grey connector, pin 50

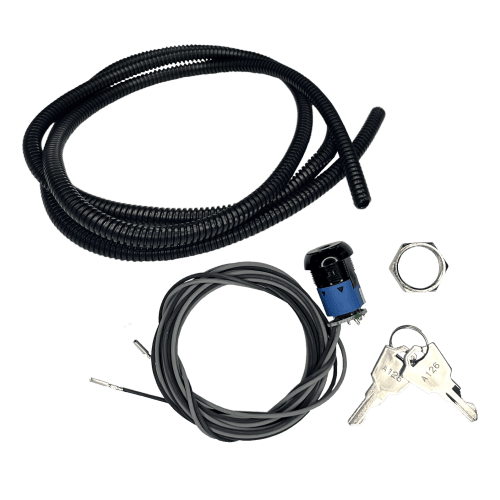

LBZ & LMM
Grey Wire = Connector 1 (the larger plug), pin 46
Black Wire - Connector 1 (the larger plug), pin 54

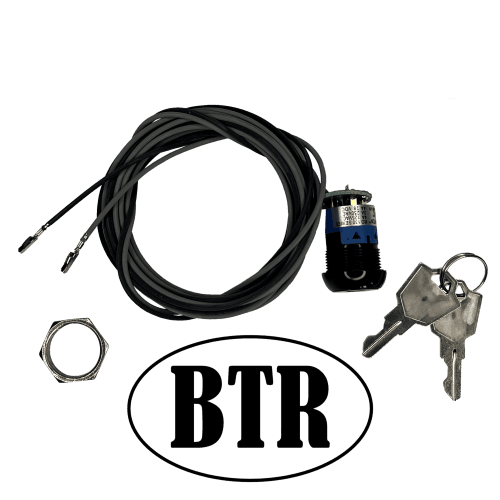

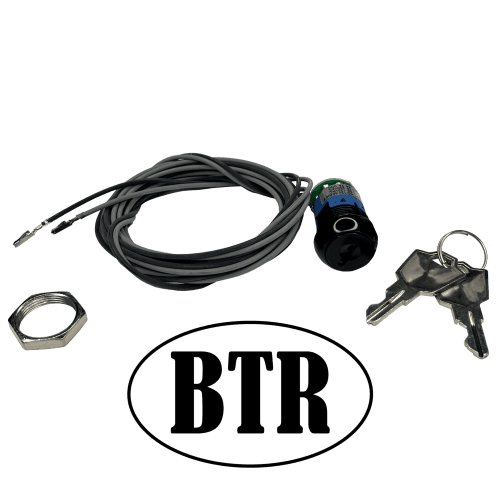

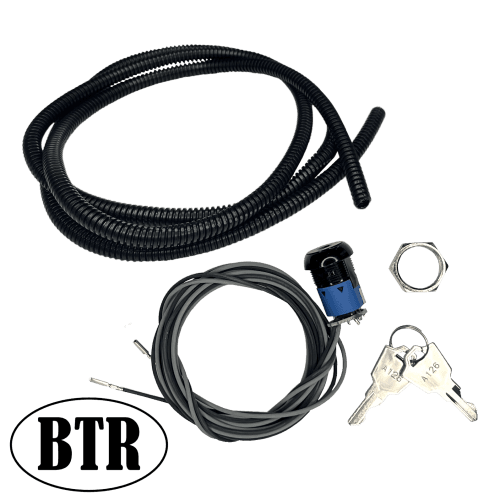

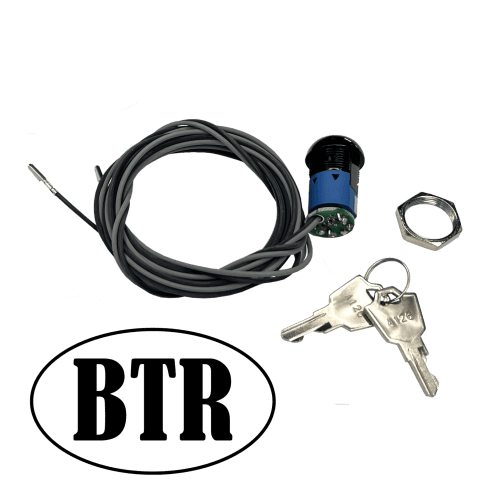

Your DSP5 switch has a nut and two washers. The bottom smooth washer must remain on the bottom with the tab located in hole number five. If it falls out, turn the switch fully counter clockwise and place the washer back with the pin in hole five and make sure the switch moves exactly four clicks clockwise. If not, turn the switch back fully counterclockwise, move the pin and try again.
