HOME / PRODUCT / BILSTEIN 5100 Series 46mm Monotube Shock Absorber for Chevy/GMC (2011-23) 2500/3500HD 4WD (Front Lifted 0"-1.5")

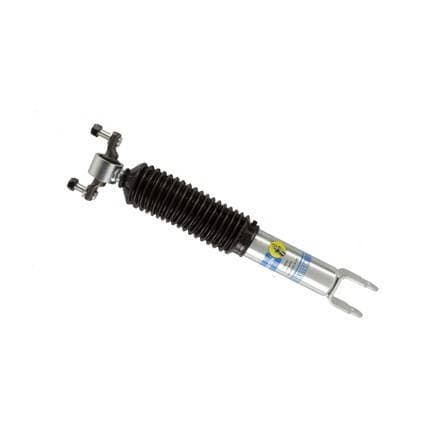

SaleBILSTEIN 5100 Series 46mm Monotube Shock Absorber for Chevy/GMC (2011-23) 2500/3500HD 4WD (Front Lifted 0"-1.5")

BILSTEIN 5100 Series 46mm Monotube Shock Absorber for Chevy/GMC (2011-23) 2500/3500HD 4WD (Front Lifted 0"-1.5")

SKU: BBGL24-253161
BILSTEIN 5100 Series 46mm Monotube Shock Absorber for Chevy/GMC 2500/3500HD 4WD (Front Lifted 0"-1.5") Bilstein 5100 Series Ride Height Adjustable Shock Absorbers are designed for front coilover style pickup suspensions. The monotube shocks feature a 46mm digressive piston with self-adjusting deflective disc valving. Multiple snap-ring grooves in the shock body allow for different spring seat positions, providing 0"-2.5" of front end lift, depending on application. Provides increased wheel travel and improved handling! (zinc-plated steel body, Triple-C-Technology coating) Lift Height is suggested by mfg. Due to the many different aftermarket suspension systems it is recommended that a measurement is taken for proper application. An eye to eye shock is measured from the center of one eyelet to the center of the other eyelet
$118.99$142.99
Loading options…

Description

•Collapsed Length (IN): 14.06
•Extended Length (IN): 18.64
•Collapsed Length (MM): 357.0
•Extended Length (MM): 473.5
•Finish: Zinc Plated
•Reservoir: No
•Body Design: 46mm ID Snap Ring Grooved Body (Coilover)

Fitment:
2011 - 2021 Chevy Silverado 2500
2011 - 2021 Chevy Silverado 3500
2011 - 2021 GMC Sierra 2500
2011 - 2021 GMC Sierra 3500
2022 - 2022 Chevy 2500
2022 - 2022 Chevy 3500
2022 - 2022 GMC 2500
2022 - 2022 GMC 3500
2023 - 2023 Chevy Silverado 2500 HD
2023 - 2023 Chevy Silverado 3500 HD
2023 - 2023 GMC Sierra 2500 HD
2023 - 2023 GMC Sierra 3500 HD
