Bilstein's 5125 Series offers Bilstein technology for custom lifted applications. 5125 Series shocks feature Bilstein's superior single tube high gas pressure design for the upmost in consistent fade-free performance and long life. Features include: Monotube gas pressure construction, Self-Adjusting Deflecting Disc Valving, High-Flow Piston Reduces Harshness, Independent Rebound & Compression Tuning, Larger Working Piston Area for Exact Damping, Superior Control for Large Diameter Tires, Available by travel lengths for custom applications.

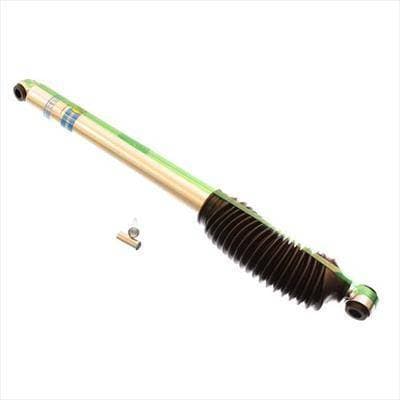

Bilstein 5125 Series Shock Absorber
Collapsed Length (IN): 17.91
Extended Length (IN): 29.7
Travel Length (IN): 11.79
Compression: 700
Rebound: 2550
Lower Mount: 5/8" Eye
Upper Mount: 5/8" Eye
Shaft Diameter: 14mm
Reservoir: No
Finish: Zinc plated
Body Design: 46mm ID smooth body (Non-coilover)
Internal Design: Mono tube
Boot Included: Yes
Mounting Parts Included: 1/2" sleeves
