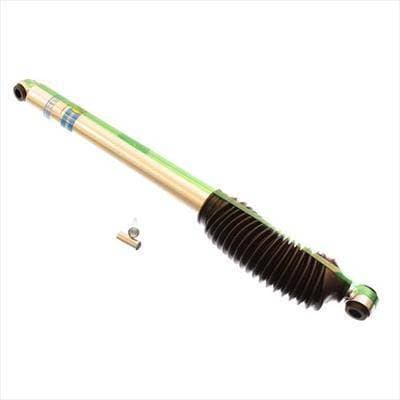

Bilstein's 5100 Series offers Bilstein technology for custom lifted applications. 5125 Series shocks feature Bilstein's superior single tube high gas pressure design for the upmost in consistent fade-free performance and long life. Features include: Monotube gas pressure construction, Self-Adjusting Deflecting Disc Valving, High-Flow Piston Reduces Harshness, Independent Rebound & Compression Tuning, Larger Working Piston Area for Exact Damping, Superior Control for Large Diameter Tires, Available by travel lengths for custom applications.
Internal Design Monotube
Extended Length (in) 25.930 in.
Gas Charged Yes
Bushing Color Black
Adjustable No
Bushing Material Rubber
Upper Mount Eyelet
Body Diameter (in) 2.000 in.
Lower Mount Eyelet
Boot Included Yes
Boot Color Black
Quantity Sold individually.
Notes Upper mount has 5/8 inch hourglass bushing.
Collapsed Length (in) 15.910 in.
Body Design 46mm ID Smooth Body (Non-Coilover)
Lower Mount Type Eye 5/8in
Reservoir No
*Collapsed Length (IN) 15.91
Position Front
Position Rear
*Extended Length (IN) 25.93
*Collapsed Length (MM) 404
Finish Zinc Plated
*Extended Length (MM) 658.5
Upper Mount Type Eye 5/8in
