Features

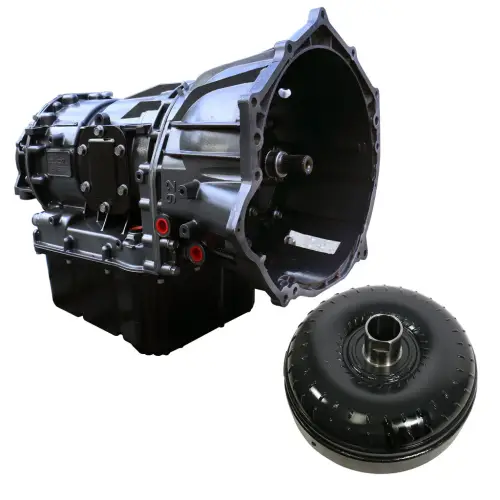

TRANSMISSION
•Increase the durability of your drivetrain
•BD Aluminum HD deep transmission pan, increases oil capacity by 3.5qt
•High energy frictions
•Revised oil circuits
•New convertor lock up valve to boost lock-up pressures
•New A & B trim valves deliver full line pressure to the clutches
•Increased clutch count
•Clutch Count: C1 8 clutches (14% increase over stock)
•Clutch Count: C2 7 clutches (17% increase over stock)
•Clutch Count: C3 7 clutches (75% increase over stock)
•Clutch Count: C4 7 clutches (17% increase over stock)
•Clutch Count: C5 7 clutches (17% increase over stock)
•Each transmission is dyno tested
TORQUE CONVERTER
•Enhanced Stall - Street/Towing applications
•Torque multiplying cast aluminum stators
•Lower rpm response than the stock converter
•More efficient operation
•Less heat and better fuel economy
•Stamp-forged steel front cover
•Furnace-brazed fins
•Up to triple the amount of lock-up clutch material
INSTALL TIME
•9 Hours
WARRANTY
Parts
•36-Months
•150,000 Miles
Labor
•12-Months
•24,000 Miles
NOTE
•No Race abuse covered
EMISSIONS
This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement parts included. (EMS:4)
