Specifications
What it does

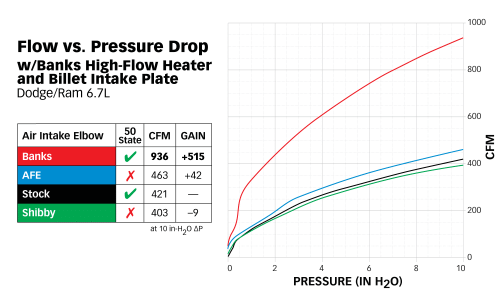

The Monster-Ram improves airflow from the intercooler. It flows 72.7 lbs/min MAF (Mass Air Flow) with Banks’ High-Flow Heater and Billet Intake Plate compared to stock's 38.6 lbs/min MAF.
Monster-Ram raises boost without increasing backpressure at the turbine. The result is a more responsive, power-efficient engine that offers even more headroom than stock for higher horsepower applications.

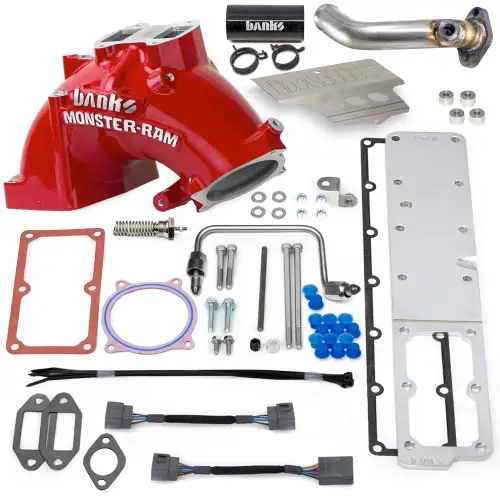

The complete system

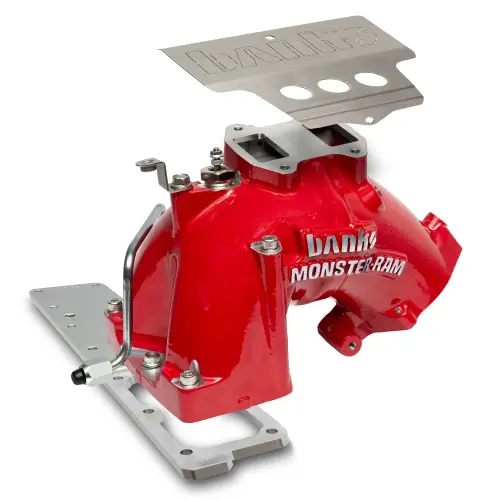

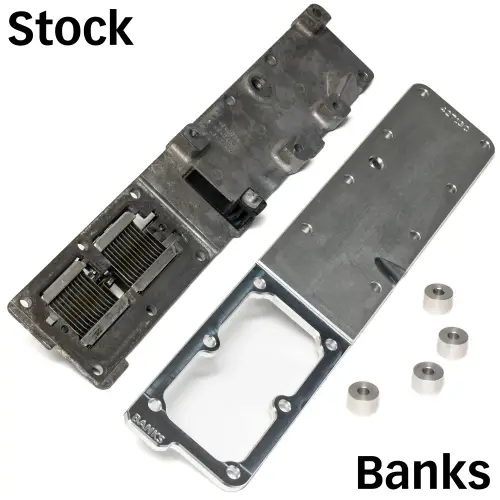

Banks’ High-Flow Heater and Billet Intake Plate complete the perfect system. The High-Flow Heater allows for the removal of the restrictive stock heater grid plate. The new vertical coil-style heater provides the same functionality for cold starts as the stock grid heater but without obstructing airflow. Replacing the restrictive stock grid heater plate with the Banks High-Flow Intake Plate removes all obstructions and turbulence in the airflow path.
How it was designed

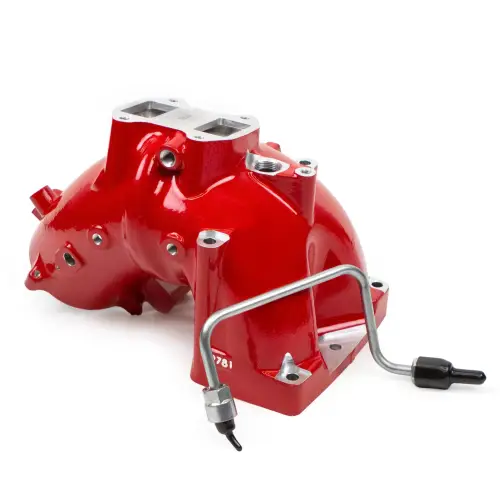

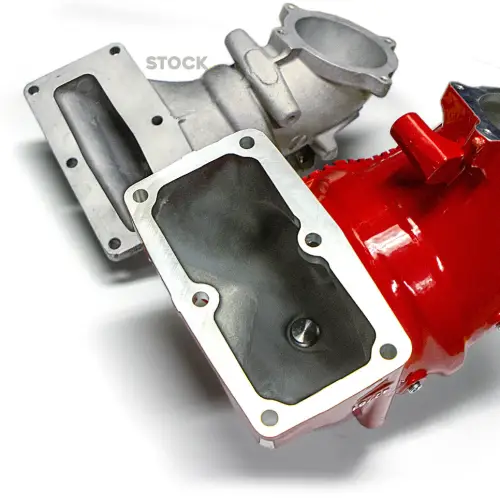

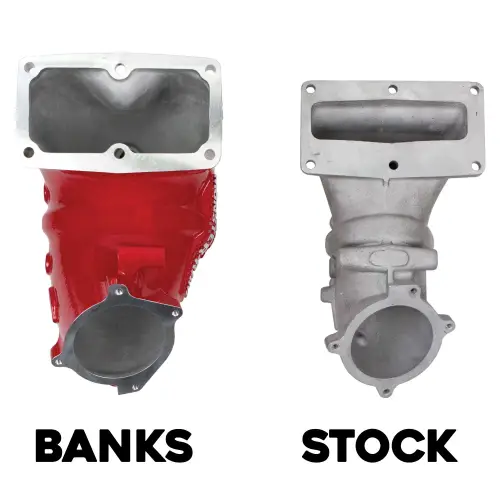

Utilizing the latest in CFD (computational fluid-dynamics), tested on the flow bench, the dyno, and on-road, Monster-Ram is a beast that only Banks could have unleashed. A direct-replacement aluminum casting, Monster-Ram is instant power, performance, and acceleration gratification. The factory inlet elbow is cramped and angular in order to accommodate the path of the stock No. 1 fuel line. Banks Engineers designed a new No. 1 fuel line, allowing the Monster-Ram to flow more air without obstruction.
Expandable

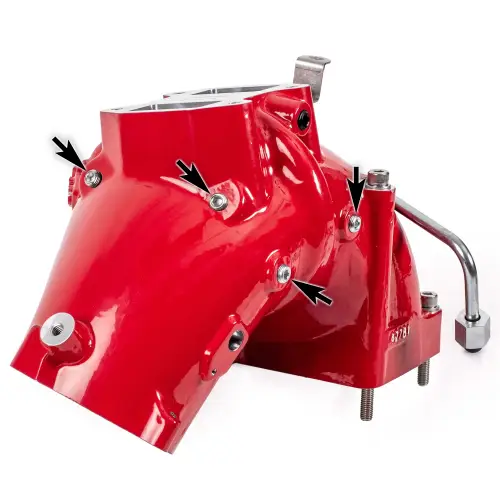

With four 1/8” NPT ports, perfect for temperature and pressure sensors, the sky's the limit for data acquisition.
Beats the competition
Like all Banks products, the Monster-Ram was tested against all available competitors. It more than doubles the improvement over the closest competitor.
Why It's Better

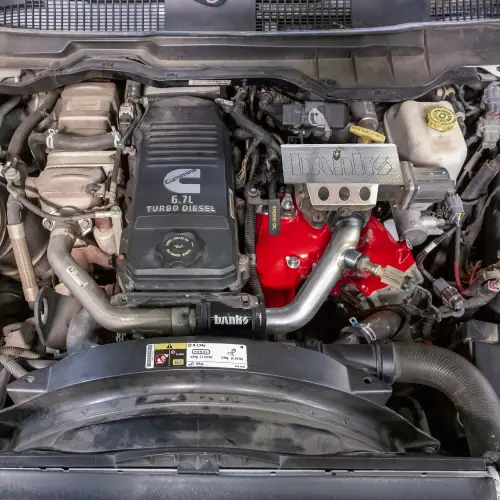

The all new Monster-Ram intake elbow for the 6.7L Cummins in your Ram lives up to its name. It is an absolute MONSTER. We pulled out all the stops when developing it.
Gain throttle response you can feel and insurance your wallet will appreciate.

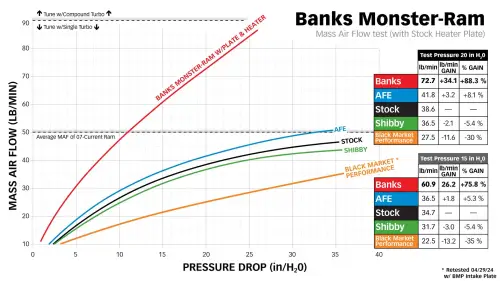

The Monster-Ram improves airflow from the intercooler. It flows 72.7 lbs/min with Banks’ New Coil Heater and High-Flow Billet Intake Plate compared to stock's 38.6 lbs/min MAF. That is a huge 88.3% improvement over stock you can feel!
The proprietary design raises boost without increasing back-pressure at the turbine. The result is improved engine response, efficiency, and headroom for daily driving and heavy hauling.

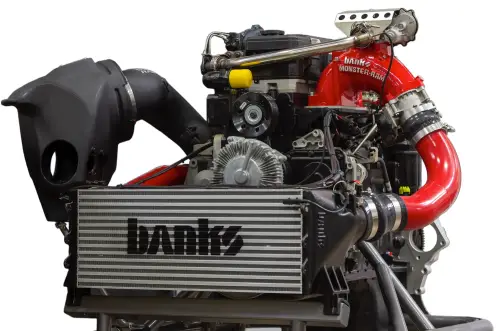

There are two devices on your Cummins engine that increase air density; the turbocharger and the intercooler.
Anything in the system that doesn’t create air density, cuts air density. We designed the Monster-Ram to get back that lost air density.
The secret to the Monster-Ram's performance is not just airflow, but the quality and literal weight of the air it flows. Your Cummins engine is limited in the volume of air it can flow through its 6 cylinders even at max RPM.
By increasing the mass of the air delivered to each cylinder, your stock-tuned engine will breathe more efficiently with less stress and set the stage for huge power gains when stacked with a tune.

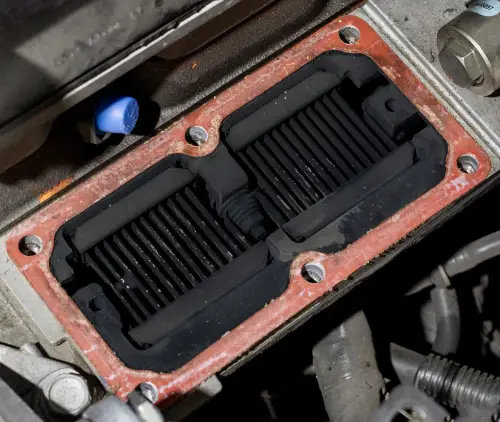

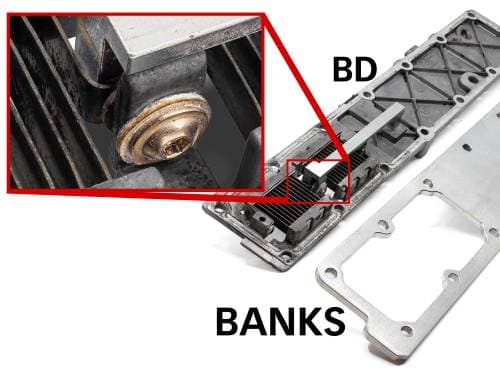

Due to heat, vibration, and time, a nut and stud from the factory heater grid has been documented to come loose and fall into the intake manifold. Once this happens, it will roll downhill into cylinder #6, causing catastrophic failure that requires a complete engine rebuild or replacement from bent valves, damaged pistons, and head.
