Kit Includes:

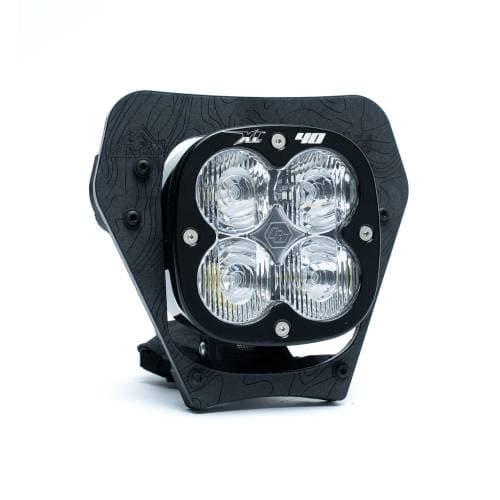

•(1x) XL40 – Trail Lens Clear w/ 2024+ OEM Connector
•(1x) Motominded XL Bracket
•All Necessary Mounting Hardware
XL40 Specifications (per light):
•Lumens: 5,224 (Hi)/ 1,435 (Low)
•Watts/Amps: 43.5W/3.4A @ 12.8V
XL40 ELS Score:
•XL40, Trail lens, high beam: 92°/5.9/226’/5224
•XL40 Trail lens, low beam: 74°/5.9/119’/1435
The Baja Designs Advantage
•Satisfaction Guarantee – 30-Day Money Back Guarantee
•Limited Lifetime Warranty – Complete Purchase Protection
•uService – Replaceable Lenses And Optics
•ClearView – All The Light, Right Where You Need It
•MoistureBlock – Waterproof, Rain Proof, Submersible
•CopperDrive – Safely Driving LEDs at 100 Percent
•5000K Daylight – Less Driver Fatigue, Natural Color
Specifications:
•Product Type XL40
•Overvoltage Protection Built-In
•Mounting Hardware Included Yes
•Lighting Type Forward Projecting
•Lighting Technology LED
•Lighting Quantity 4
•Lighting Modes Beam
•Light Quantity 1
•Lens Material Hardcoated Polycarbonate
•Lens Color Clear
•Mounting Hardware Material Stainless Steel
•Universal or Specific Universal
•Wiring Harness Included No
•Wattage (W) 43.5
•Housing Material Powder Coated Cast Aluminum
•Housing Color Black
•Description Trail; Clear
•Brightness (Lumens) 5,224 (Hi) / 1,435 (Low)
•Bezel Material Powder Coated Cast Aluminum
•Beam Pattern Trail
•Average Rated Life (hr.) 49930
•Amperage Rating (A) 3.4
•High: 92°/5.9/226’/5224; Low: 74°/5.9/119’/1435
Standards & Compliance
•Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
•Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
•Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Dimensions
•Weight (lbs.) 2.45
•Length (in.) 4.43
•Height (in.) 4.43
•Depth (in.) 3.65
Fitment:
KTM 150 XC-W 2024-2025
KTM 250 XC-W 2024-2025
KTM 300 XC-W 2024-2025
KTM 350 EXC-F 2024-2025
KTM 500 EXC-F 2024-2025
KTM 350 XW-F 2024-2025
KTM 500 XW-F 2024-2025
KTM 450 XCF-W 2024-2025
