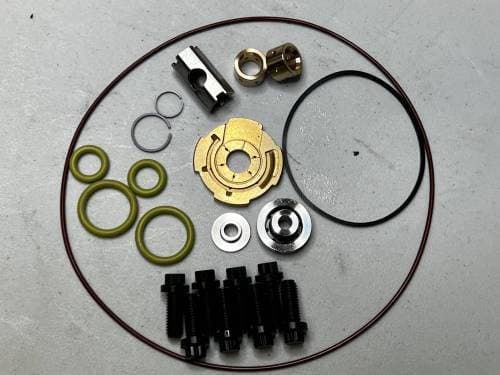

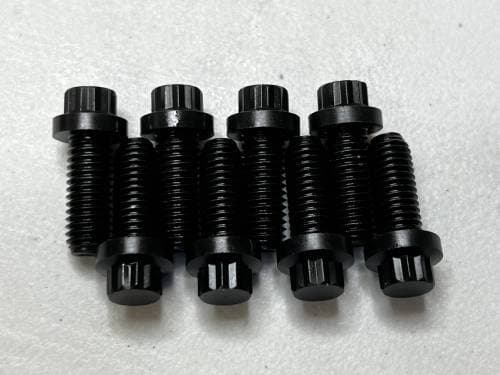

(20) Housing Bolts

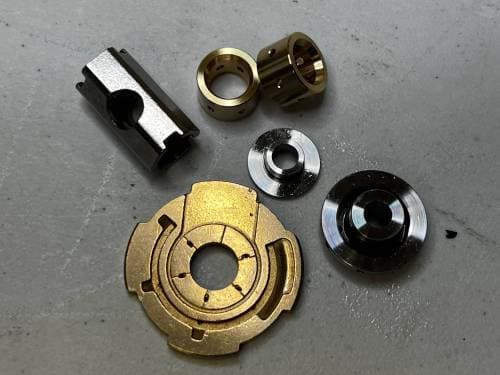

(1) 360* Thrust Bearing
(2) Journal Bearings
(1) Journal Bearing Spacer
(1) Thrust Collar
(1) Trust Spacer

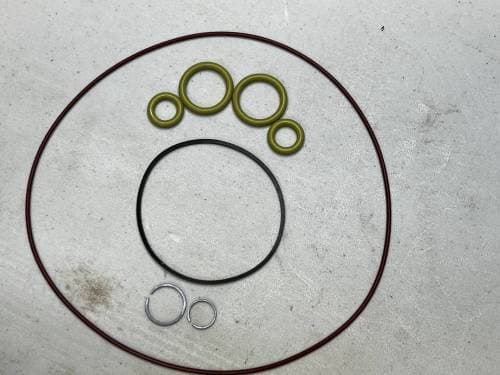

(1) Back Plate Seal O-Ring
(1) Compressor Piston Ring Seal (Small “C” Clip)
(1) Turbine Piston Ring Seal (Large “C” Clip)
(2) Oil Feed O-Rings
(2) Oil Drain O-Rings
(1) Back Plate to Center Cartridge Seal (Cross Shaped)
(1) Turbo Mounting Gasket
• Brass Bearings dissipate heat faster and provide a longer life span vs steel.
