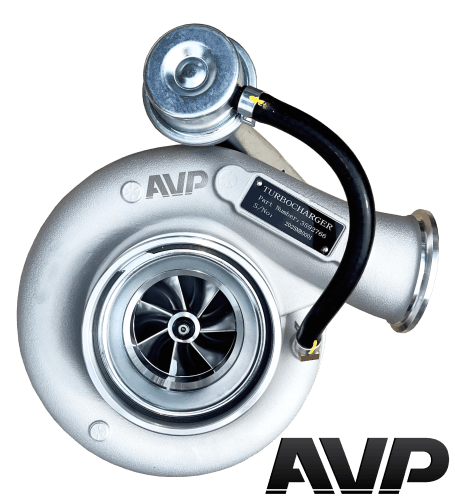

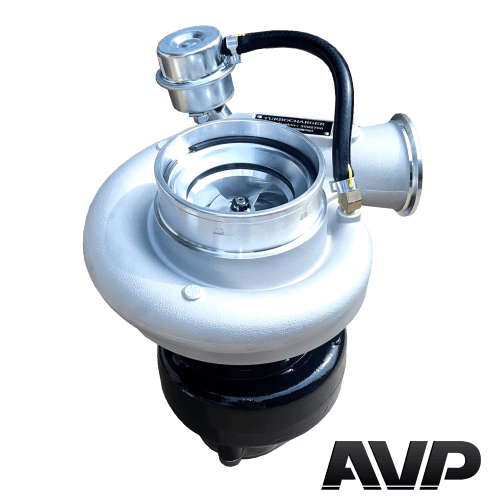

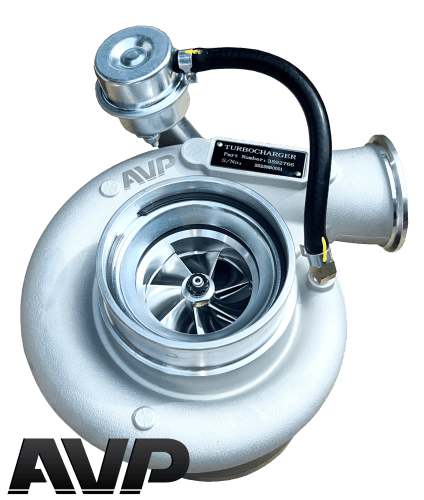

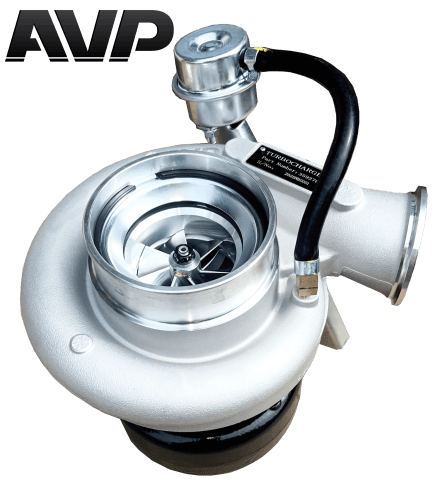

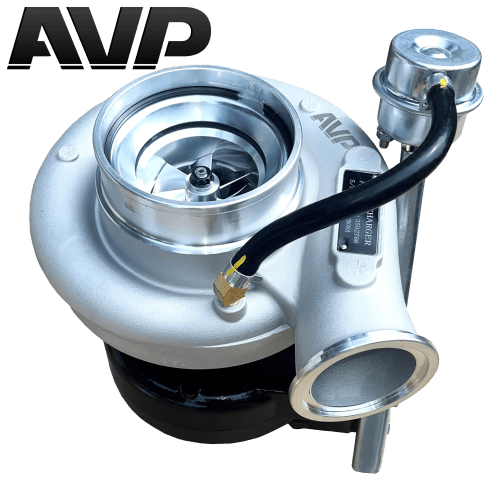

The AVP HX35W Stage 1 Turbo is engineered as a drop-in performance upgrade for 1994-2002 Dodge Ram 2500 and 3500 trucks equipped with the 5.9L Cummins diesel engine. This turbo features an upgraded billet compressor wheel that delivers faster spool-up, improved throttle response, and increased boost pressure throughout the powerband, making it ideal for drivers seeking more power and efficiency without sacrificing reliability.

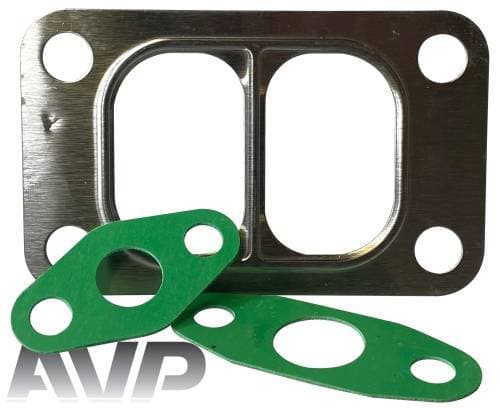

Maintaining the proven HX35W footprint, the Stage 1 turbo utilizes a 56mm compressor inducer, 60mm compressor exducer, and 12cm² turbine housing for optimal airflow and compatibility with stock components. The billet wheel design not only increases power potential but also helps lower EGTs for safer towing and heavy-duty use. Each turbo is precision-balanced and comes ready to install, complete with a manifold gasket, outlet gasket, and wastegate actuator to streamline your installation process.
This turbo is a direct replacement for Holset part numbers 3592766, 3592767, 3774569, and 3800799, covering both 12-valve and 24-valve 5.9L Cummins engines from 1994 through 2002. Warranty coverage is 1 year for the original purchaser (void if damaged by improper installation or poor care, non-transferable). Please verify the orientation of your stock wastegate before ordering to ensure proper fitment.
