AVP HPOP STC Fitting Update Kit for Ford (2004.5-10) 6.0L Power Stroke Diesel

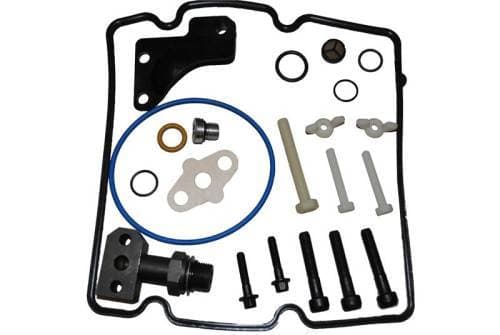

The AVP 6.0 STC HPOP Fitting Update Kit 4C3Z-9B246-F is a New One-Piece High Pressure Oil Connector. The installation of the 6.0 STC HPOP Fitting Update Kit 4C3Z-9B246-F is highly recommended when you're replacing your EGR cooler, installing a EGR delete or oil cooler. It is very highly recommended that you install the Ford 6.0 STC HPOP Fitting Update Kit 4C3Z-9B246-F anytime the pump is exposed during repairs. By installing this 6.0L STC HPOP Fitting Update Kit 4C3Z-9B246-F kit will restore engine reliability and customer satisfaction by eliminating repeat failures. The old style fittings were prone to leaking causing hard start, low HPOP pressures and stalling when engine reaches normal operating temperature. These known issues are eliminated with the installation of the Ford 6.0 STC HPOP Fitting Update Kit 4C3Z-9B246-F. *The AVP 6.0 STC HPOP Fitting Update Kit 4C3Z-9B246-F contains the new bracket in a kit as shown in image. The AVP 6.0 STC HPOP Fitting Update Kit 4C3Z-9B246-F is the redesign of the high pressure oil pump for 2005 and newer Power Stroke diesel engines. The "snap-to-connect" or STC fitting used to connect the high pressure oil pump to the oil supply branch tube has been problematic. The two piece fittings have a tendency to flex causing wear on the seal and the locking ring resulting in leaks and occasionally the complete separation of the fitting. When a leak occurs at this fitting, the engine may be difficult to start or may not start at all. Depending on the severity of the leak the engine may stall, sometimes abruptly and without warning. The AVP 6.0 STC HPOP Fitting Update Kit 4C3Z-9B246-F is the most current version available to service failed Snap To Connect or Quick Connect fittings on 2005 through 2007 Ford and International trucks. The included bracket is designed to support the fitting and branch tube and eliminate the possibility of the fitting to become separated. The AVP 6.0 STC HPOP Fitting Update Kit 4C3Z-9B246-F contains: 1 Support Bracket 1 Hydraulic Pump Seal Kit 1 Branch Tube Adapter - Male 1 HPOP Adapter Fitting - Female 2 M6 X 35 mm Branch Tube Bolts 2 M8 X 60 mm Pump Bolts 1 M8 X 45 mm Pump Bolt *Installing a the STC HPOP Fitting Update Kit fixes a weak link in the Ford 6.0L Power Stroke!
