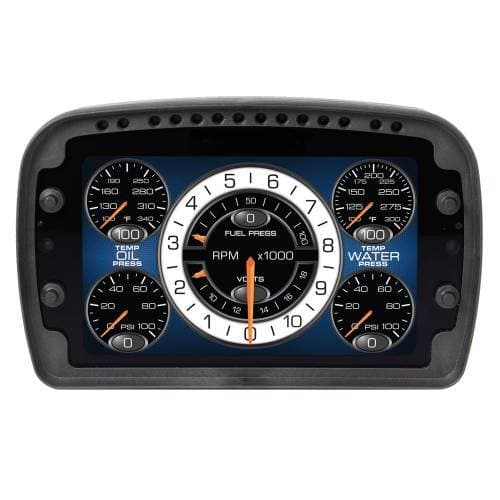

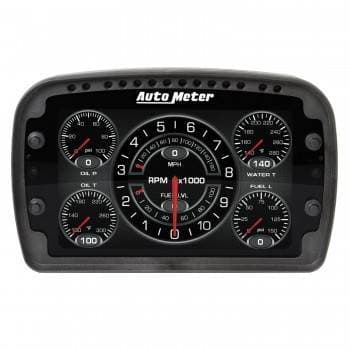

Display Features:
7.0” TFT LCD panel, 1000 nit brightness for unmatched daytime and nighttime visibility with 800x480 resolution. Onboard photo sensor for automatic brightness control
Dimensions - 8.3" Wide x 5.2" High x 1.4" Deep
Carbon Composite Housing
Single 37 way autosport (AS) wiring loom connector for ease of installation and removal
12 analog inputs for discrete sensors ideal for parameters not supported on the vehicle communication bus or ECU. Expansion modules available separately for additional input
DataPro Designer PC Setup utility
Fully user configurable from display via integrated 4 button interface for at track changes. Optional external switch set can be mounted within driver reach for easy access
16 configurable multi-color LED indicator lights can be programmed for a wide variety of alarm and shift / gear change indication functions
Initial release supports 6 layers or screens selected from user- configurable templates (screens/instrument cluster designs/layouts), additional configurability supporting team selected graphics, parameter/instrument type and location, and size will be made available with future firmware and PC software releases
Display features perfectly rendered virtual analog needles, value display bands, digital value indicators for vehicle parameters and configurable full color text warning messages
Patented Predictive Lap Timing Display for Driver and Vehicle Development
Inputs:
4 pulse/digital or analog inputs (0-5V, Hz, or resistive)
8 analog inputs (0-5V)
5 external switches / control outputs
Internal 3-axis accelerometer +/-6g
Internal battery voltage
GPS Mapping and Lap Timing
Communications:
2 Configurable RS232 ports
Configurable CAN BUS ports
Ethernet port for PC comms:(config. & firmware upgrades)
1 USB port: data exchange, configuration,copy/upload, & firmware updates.
Data Recording:
4 GB Onboard Datalogging Memory
Record up to 128 channels
Sample rates up to 500 Hz (Select inputs 1000 Hz)
Includes powerful DataPro Analysis Software
Environmental:
IP65 sealed
Operating temperature range: 20ºF to 180ºF
Humidity: 0-100% RH
Continuous vibration up to 20g, Shock up to 50g
