HOME / PRODUCT / ATS Five Star Viskus Clutch Drive Torque Converter, Ford (2003-07) 5R110, 6.0L
SaleATS Five Star Viskus Clutch Drive Torque Converter, Ford (2003-07) 5R110, 6.0L

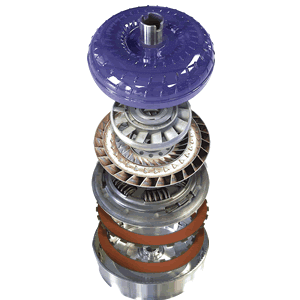

ATS Five Star Viskus Clutch Drive Torque Converter, Ford (2003-07) 5R110, 6.0L

SKU: FSMF3029503278
The FiveStar® Torque Converter for 2003 to 2007 Ford 6.0L PowerStroke is the only Diesel torque converter on the market that has been awarded three patents from the United States patent office. There is no other torque converter offered anywhere that can make this claim. The 30 square drive tabs that are precision CNC cut into the billet cover is only one of the many patented aspect of the FiveStar® converter. ATS engineered a unique two piece design that not only allows us to cut precision radial flank drive lugs into the cover but also utilizes a plasma weld ensuring an unmatched quality standard. The patented radial flank drive tabs virtually eliminate the wear that is common with all other round tab multi-disc torque converters. This is the number one reason ATS can offer a 5 year warranty on all our torque converters.
$1,509.99$1,677.77
Loading options…

Description

Features of the FiveStar® torque converter are:
-Viskus Clutch Drive power assist technology
-Billet Cover with Patented square Flank Drive
-Square Tab Construction (Not Round)
-Viskus Disc CNC Laser Cut Clutch Plates
-Billet Piston with Patented flank drive tab design
-Proprietary ATS exclusive Clutch Formulation with unique bonding technology (ensures 100% chemical Bond)
-Redesigned Spring Dampener supports increased extend torque loads
-4340 Harden turbine splines provide longevity due to engine torsional stress
-Fully Welded Turbine and Impeller Vanes
-CNC Stator with High Flow Windows Increase Oil Flow providing increase efficiency
-Full Roller Bearing Construction Between High Load Areas
-4340 CNC cut Pump Drive Hub lock into Impeller Housing and Plasma welded for unsurpassed strength.
