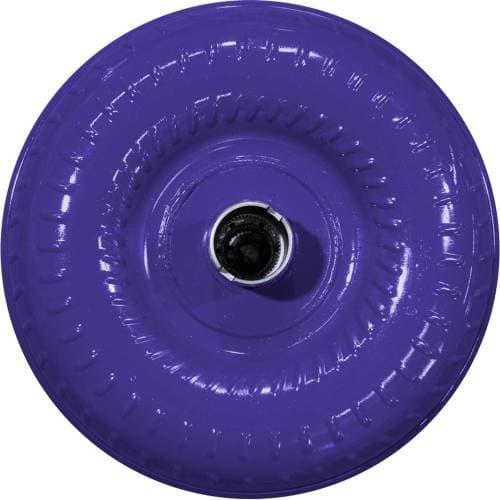

2100-2500 RPM Stall speed -Five Star Torque Converter (300mm Housing) High Stall Billet Stator R-Trim, Positive Impeller, Dodge 1994 to 2007, 5.9L Cummins Core Charge 302-890-2164
The ATS Five Star utilizes an optimized factory stall speed that features improved torque multiplication. With factory torque multiplication at approximately 1.25:1, the ATS Five Star boasts 2.4:1. This occurs when peak engine torque is achieved. Increased torque multiplication results in improved vehicle response, towing and driving ability.
Standard in all transmission packages, and available individually, the ATS Five Star Torque Converter is built to handle daily driving and towing duties while delivering reliable performance.
Patented Viskus Clutch Drive System for increased efficiency Billet Cover with Patented Square Flank Drive Square Tab Construction (Not Round) Viskus Disc CNC Laser Cut Clutch Plates Billet Piston with Patented Flank Drive Tab design Proprietary ATS exclusive Clutch Formulation with unique bonding technology (ensures 100% chemical Bond) Redesigned Spring Dampener supports increased torque loads 4340 hardened turbine splines provide longevity and reliability Fully welded turbine and impeller vanes CNC Stator with high flow windows increase oil flow, providing increased efficiency Full roller bearing construction between high load areas 4340 CNC cut pump drive hub locked into impeller housing Plasma welded for unsurpassed strength NOTE! Recommended for racing applications where a large single turbo or large compound turbos are being used. This converter will flash to 2000+RPM and stall up to 3000 RPM under boost.
