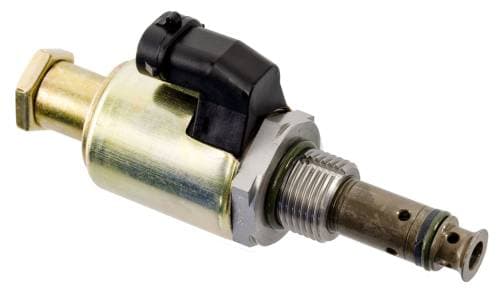

The Alliant Power AP63402 injection pressure regulator valve is built for 1996–2003 Ford 7.3L Power Stroke engines found in F-Series pickups, E-Series vans, and Excursions, as well as matching International 444E applications that use the later-style IPR without an edge filter. It is a brand new, direct-fit replacement designed to match OE form, fit, and function, making it a trusted option when restoring proper high-pressure oil control on a 7.3L truck.
On HEUI-equipped 7.3L Power Stroke engines, the IPR valve is responsible for regulating injection control pressure (ICP) by controlling high-pressure oil flow from the HPOP into the injector rails. As these trucks age, the original valve can become contaminated with debris, wear internally, or stick, leading to common symptoms such as hot no-start, long crank times, surging, stalling, or low ICP codes. Replacing a compromised IPR with a new Alliant unit restores precise pressure control and helps return the engine to stable operation.
This AP63402 version is specifically the without edge filter design, which matches 1995.5–2003 7.3L Power Stroke engines and corresponding International DT/I-530 variants that use the F81Z-9C968-AA/AB style IPR. That makes it an excellent fit for daily driven work trucks, heavy towing setups, and fleet vehicles that depend on consistent power and reliability from the 7.3L platform. Because it is brand new with no core charge, shops and owners avoid the hassle of returning an old unit while still getting OE-level performance.
Installation is straightforward for a technician familiar with 7.3L service: the valve threads into the back of the high-pressure oil pump or oil rail, uses the factory electrical connector, and should be installed along with new seals and a properly inspected IPR screen where applicable. It is often paired with other high-pressure oil system maintenance such as new HPOP lines, ICP sensor replacement, and injector O-rings to fully address hard-start or drivability complaints.
This Alliant Power IPR's quality is a key part of maintaining injection control pressure, reducing downtime, and keeping older 7.3L Power Stroke and 444E engines in service for the long haul.
Cross Reference:
APP1663, 1824982C91, 1829856C91, 1836412C91, 1841086C91, 1841217C91, 19507510, 19700360, 280660576181, 522007, 522-007, 522008, 522-008, 63402, AP63402, CM5013, CM-5013, DA2251666, F4TZ9C968A, F4TZ-9C968-A, F4TZ9C968CB, F4TZ-9C968-CB, F81Z9C968, F81Z9C968AA, F81Z-9C968-AA, F81Z9C968AB, FS00203, HTF100, HTF101, IPR100, IPR101, RPP1841217, S17343, APP1663, 843497102136
